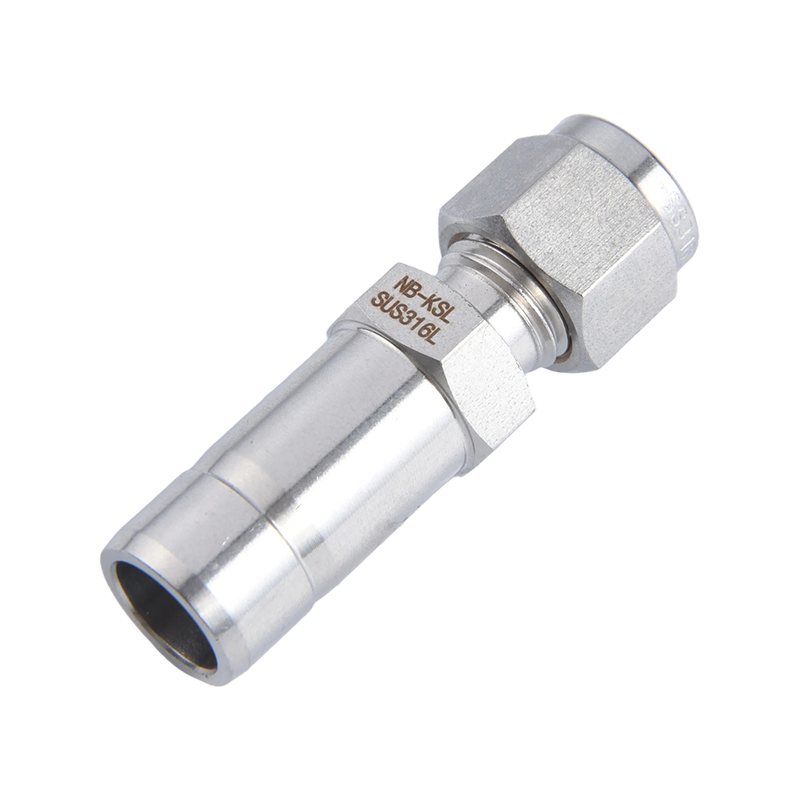

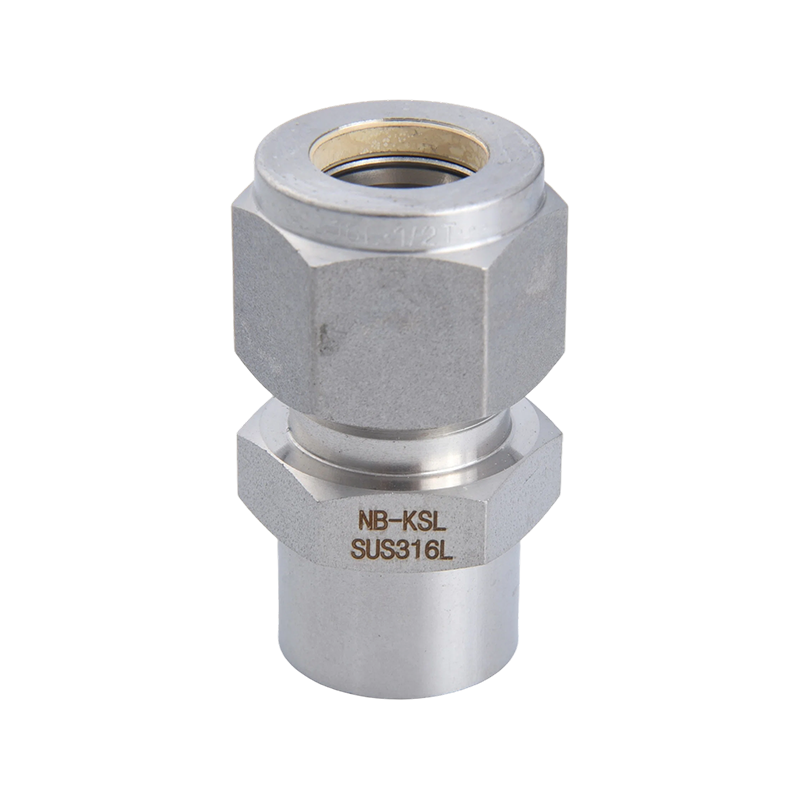

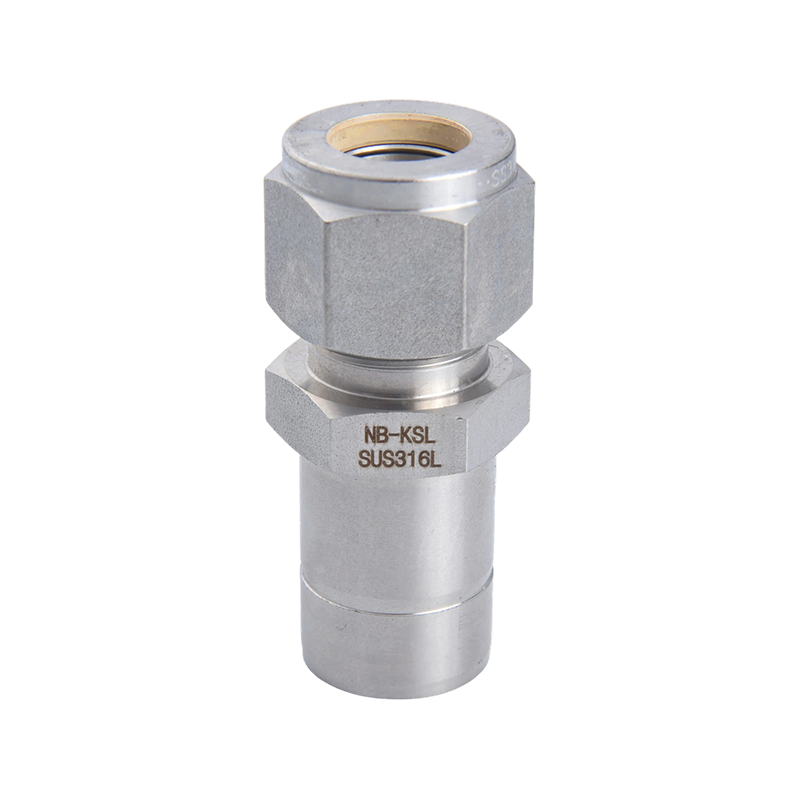

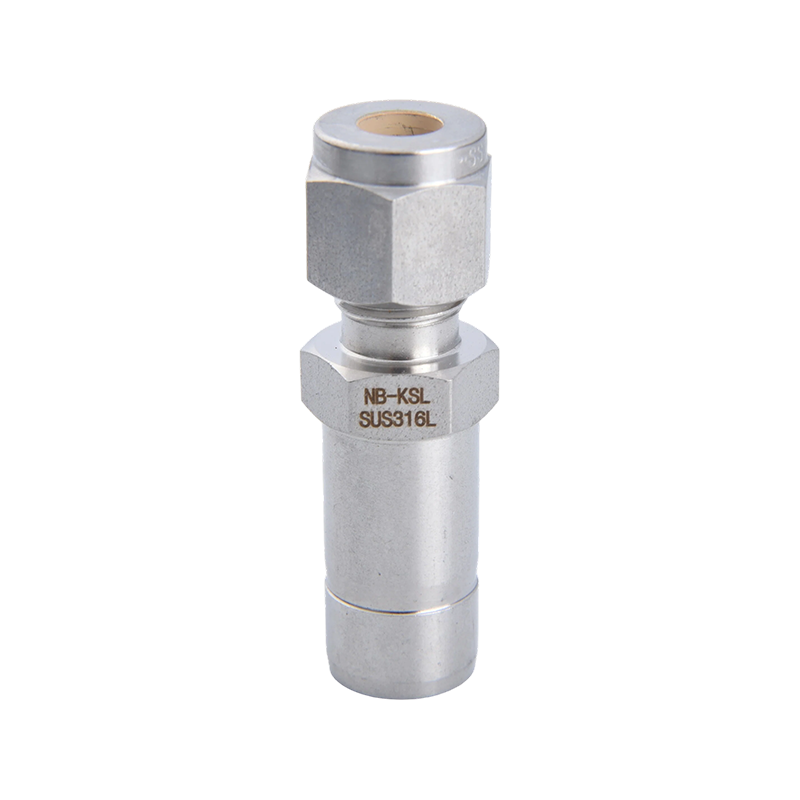

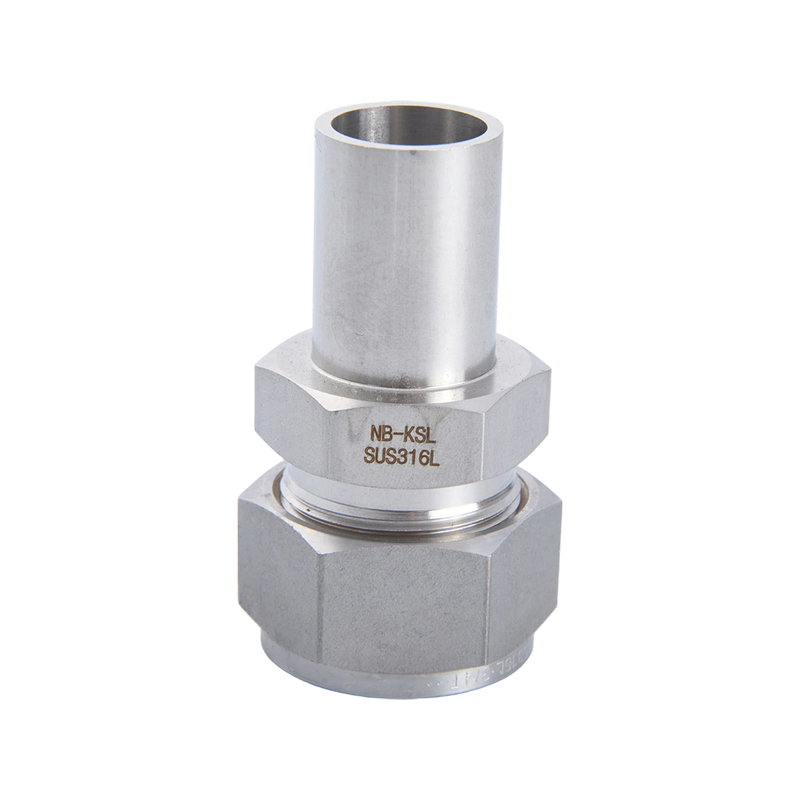

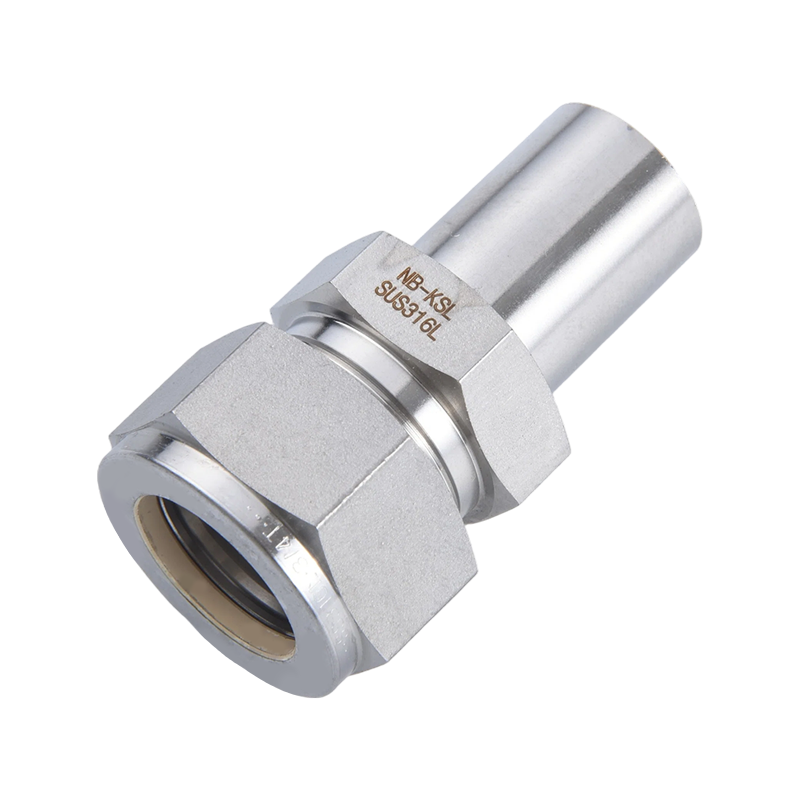

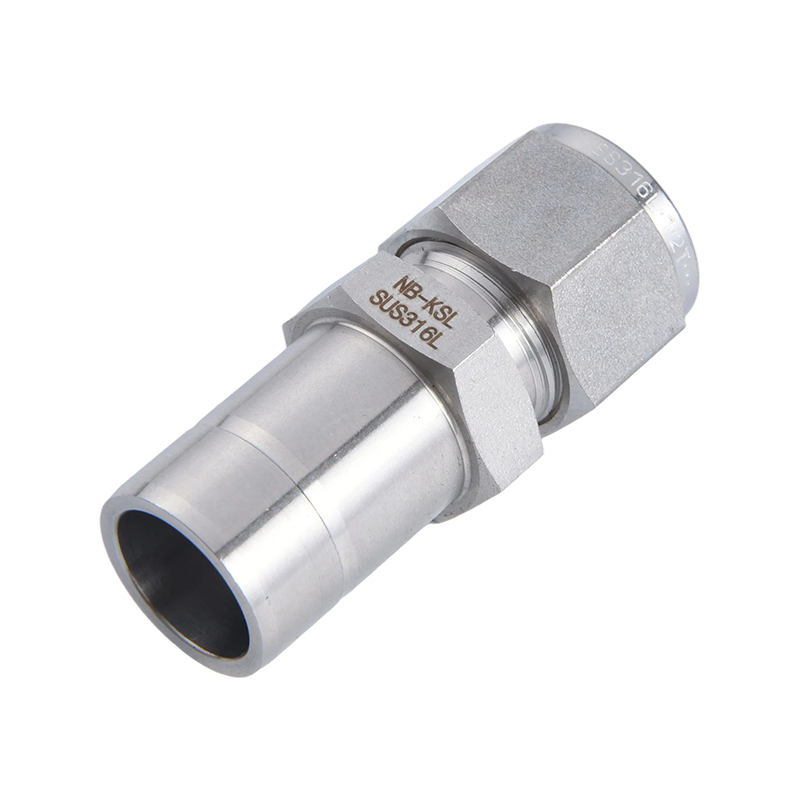

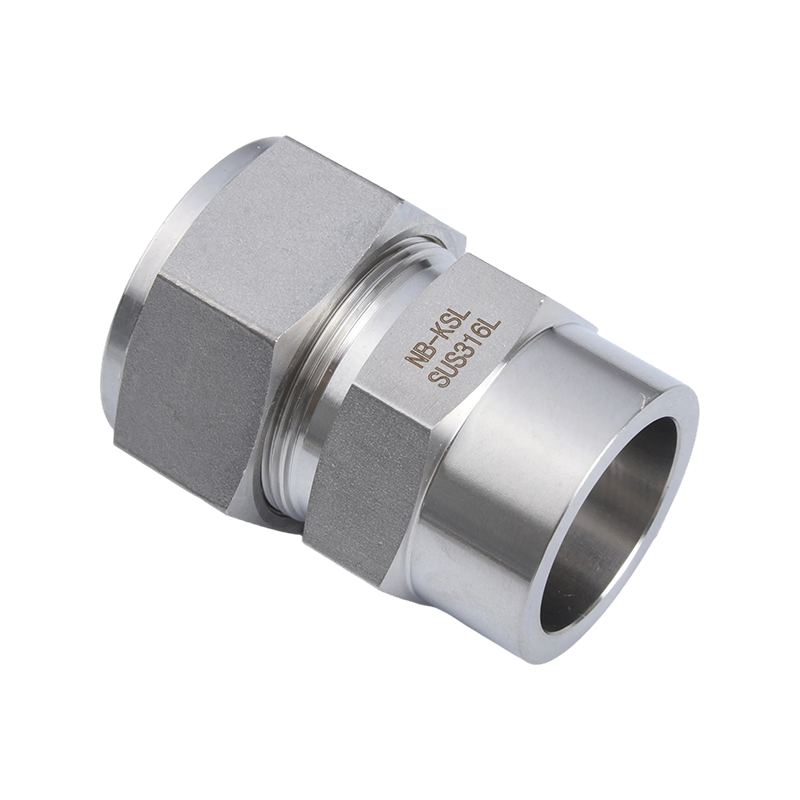

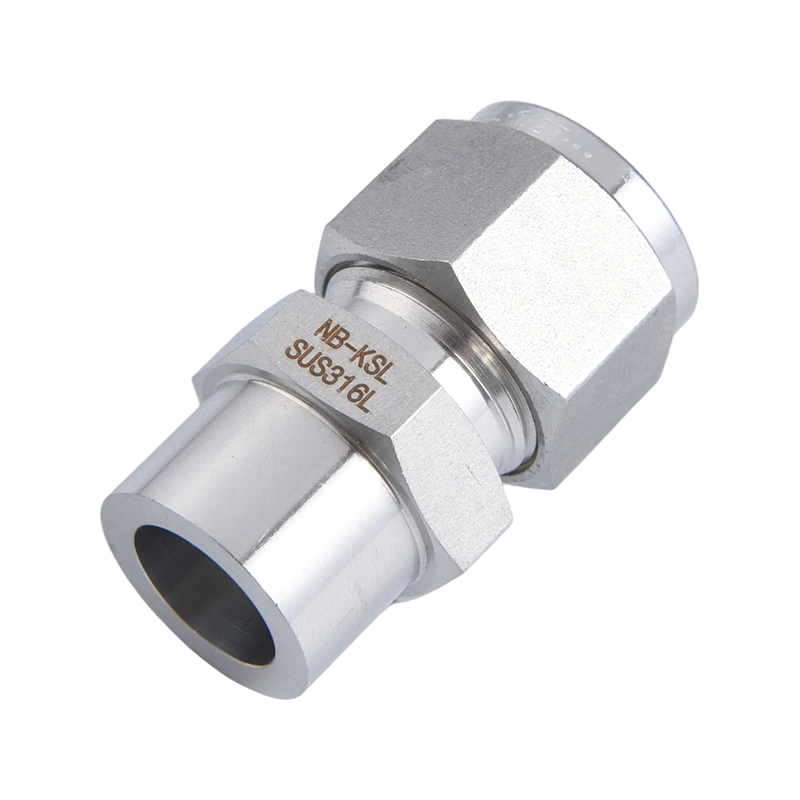

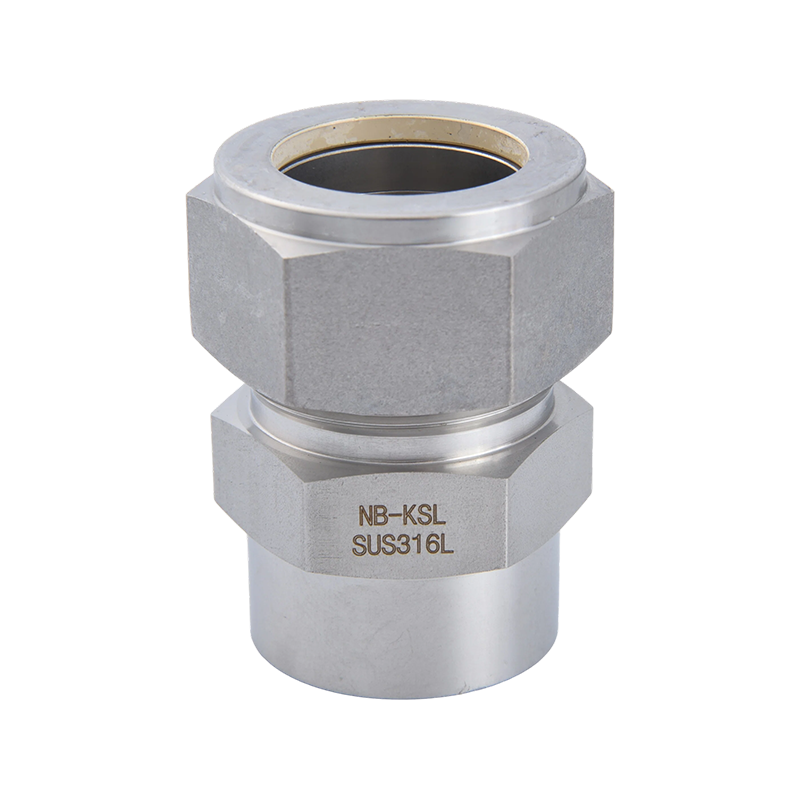

Connecteur réducteur en acier inoxydable 316L

Name: Connecteur réducteur en acier inoxydable 316L
Rating: 5 (99 reviews)

The 316L stainless steel reducing fitting is designed to meet both fluid mechanics and industrial application requirements. Its reducing structure allows for a smooth transition between pipe diameters, reducing fluid pressure loss and turbulence. The fitting features a gentle slope design, and depending on the application, the connection method can be welded, threaded, or flanged. Les raccords de réduction soudés conviennent aux systèmes à haute pression, formant une structure métallique continue par soudage, offrant des performances d'étanchéité optimales et la plus haute fiabilité. Threaded reducing fittings facilitate disassembly and maintenance and are suitable for medium and low-pressure piping systems. Les raccords à bride conviennent aux grandes canalisations ou aux applications nécessitant un démontage fréquent, obtenant une connexion sécurisée grâce à l'utilisation d'un joint d'étanchéité pour garantir un fonctionnement sûr du système.

Contactez-nous

PRÉCV：No previous product SUIV：Adaptateur de filetage de tuyau à tuyau en acier inoxydable 316L

Descriptif
Contactez-nous

RÉDUCTEUR

(MÉTRIQUE) Connecte le tube métrique au port fractionnaire NB-KSL

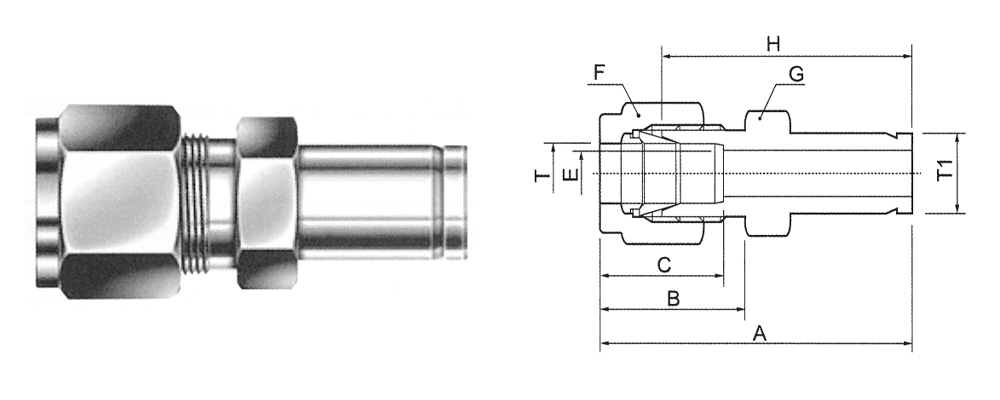

NUMÉRO DE CATALOGUE	TUBE EN T O.D.	T1 TUBE	A	B	C	E	F	G	H
ODTA-01-02	1/8	6.35	37	16.5	14	2.4	12	12	29.5
ODTA-01-03	1/8	9.52	39.5	16.5	14	2.4	12	12	32
ODTA-01-04	1/8	12.7	45.1	16.5	14	2.4	12	14	37.6
ODTA-02-02	1/4	6.35	40.3	17.8	15.8	4.8	14	12	32.5
ODTA-02-03	1/4	9.52	41.1	17.8	15.8	4.8	14	12	33.3
ODTA-02-04	1/4	12.7	46.7	17.8	15.8	4.8	14	14	38.9
ODTA-02-06	1/4	19.05	48.8	17.8	15.8	4.8	14	22	41
ODTA-03-02	3/8	6.35	41.5	19.6	19.6	4.8	17	16	33.9
ODTA-03-03	3/8	9.52	43.4	19.6	19.6	7.1	17	16	35.8
ODTA-03-04	3/8	12.7	49	19.6	19.6	7.1	17	16	41.4
ODTA-03-06	3/8	19.05	50.6	19.6	19.6	7.1	17	22	43
ODTA-04-02	1/2	6.35	45	22.2	23.4	4.8	22	22	34.8
ODTA-04-03	1/2	9.52	47.1	22.2	23.4	7.1	22	22	36.9
ODTA-04-04	1/2	12.7	52.7	22.2	23.4	9.9	22	22	42.5
ODTA-04-05	1/2	15.88	53.9	22.2	23.4	10.4	22	22	43.7
ODTA-04-06	1/2	19.05	53.9	22.2	23.4	10.4	22	22	43.7
ODTA-06-04	3/4	12.7	54.9	22.4	24.4	9.9	30	27	44.5
ODTA-06-08	3/4	25.4	62.7	22.4	24.4	15.7	30	27	52.3
ODTA-08-03	1"	9.52	56.8	27	31.7	7.1	38	35	44.1
ODTA-08-04	1"	12.7	62.4	27	31.7	9.9	38	35	49.7
ODTA-08-06	1"	19.05	63.9	27	31.7	12.7	38	35	51.2
ODTA-08-08	1"	25.4	69.9	27	31.7	20.3	38	35	57.2

(MÉTRIQUE) Connecte le tube métrique au port fractionnaire NB-KSL

ODTA-3-02	3	6.35	36.5	16	13.5	2.4	12	12	29.5
ODTA-4-02	4	6.35	36.7	16.2	13.7	3	12	12	30
ODTA-6-02	6	6.35	40.3	17.8	15.8	4.8	14	12	32.5
ODTA-6-03	6	9.52	41.1	17.8	15.8	4.8	14	12	33.3
ODTA-6-04	6	12.7	46.7	17.8	15.8	4.8	14	14	38.9
ODTA-8-02	8	6.35	40.1	18.7	16.7	4.8	16	14	32.4
ODTA-8-03	8	9.52	42	18.7	16.7	6.4	16	14	34.3
ODTA-8-04	8	12.7	47.8	18.7	16.7	6.4	16	16	40.1
ODTA-10-03	10	9.52	44.5	19.6	19.6	7.1	19	17	36.9
ODTA-10-04	10	12.7	49.8	19.6	19.6	7.9	19	17	42.2
ODTA-12-04	12	12.7	53.3	22.8	23.8	9.5	22	22	42.5
ODTA-12-06	12	19.05	54.5	22.8	23.8	9.5	22	22	43.7
ODTA-18-06	18	19.05	56.8	22.8	24.8	12.7	30	27	46
ODTA-18-08	18	25.4	63.1	22.8	24.8	13.9	30	27	52.3
ODTA-25-08	25	25.4	69.9	27	31.7	20.3	38	35	57.2

Toutes les dimensions sont en millimètres, sauf indication contraire, uniquement à titre de référence, sous réserve de changement.
